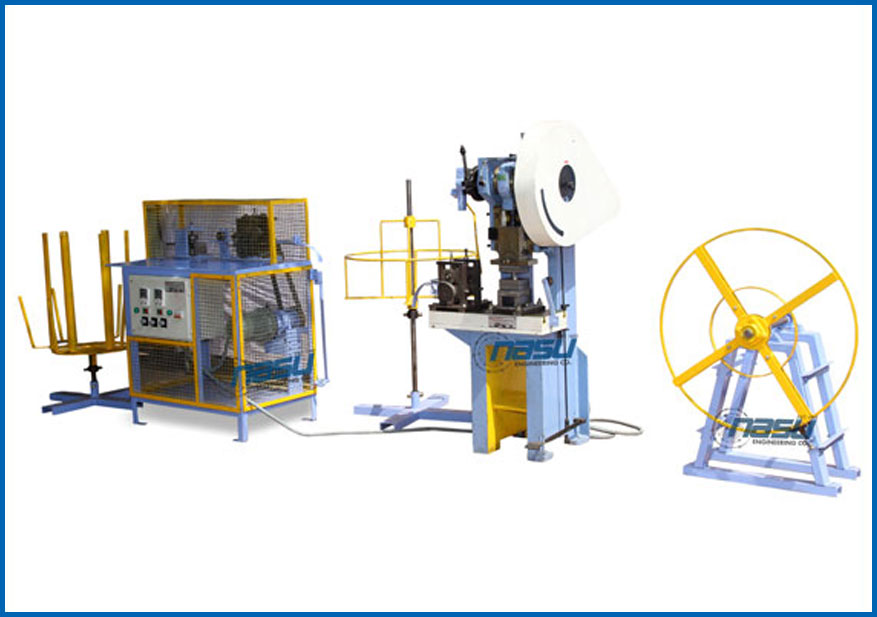

RAZOR BARBED TAPE M/C
|
|
Model
|
NecoRBT - 9
|
|
PUNCHING PRESS
|
|
Strip Width
|
19mm - 20 mm
|
|
Strip Thickness
|
0.37mm - 0.50 mm
|
|
Strip Matl.
|
Galvanized / Stainless Steel
|
|
Punching Strokes / min
|
150/min
|
|
Speed
|
6.75 m/min
|
|
Press Tonnage
|
10ton
|
| Motor Rating
|
0.75 Kw(1HP):3Ph:440V:50Hz
|
| Barb Pitch
|
45mm
|
| Barb Length
|
30mm
|
|
ASSEMBLY UNIT
|
|
Wire Dia(G.I.)
|
2.0 mm - 2.5 mm
|
|
Speed
|
6m/min
|
|
Motor Rating
|
0.75 Kw(1HP):3Ph:440V:50Hz
|
|
Control Panel
|
Variable Speed Drive-Syncronised
|
|
WINDING UNIT
|
|
Coil Dia.
|
450 mm/600mm/750mm
|
|
Accessories
|
|
Strip Decoiler(Manual)
|
RBT Coil Winder (Manual)
|
|
Wire Spool(Manual)
|
|
* All Photos are for Representation Only.
* All Specifications are subject to change without any prior Notice.
