CHAIN LINK FENCE MAKING MACHINE
|
|
Model
|
|

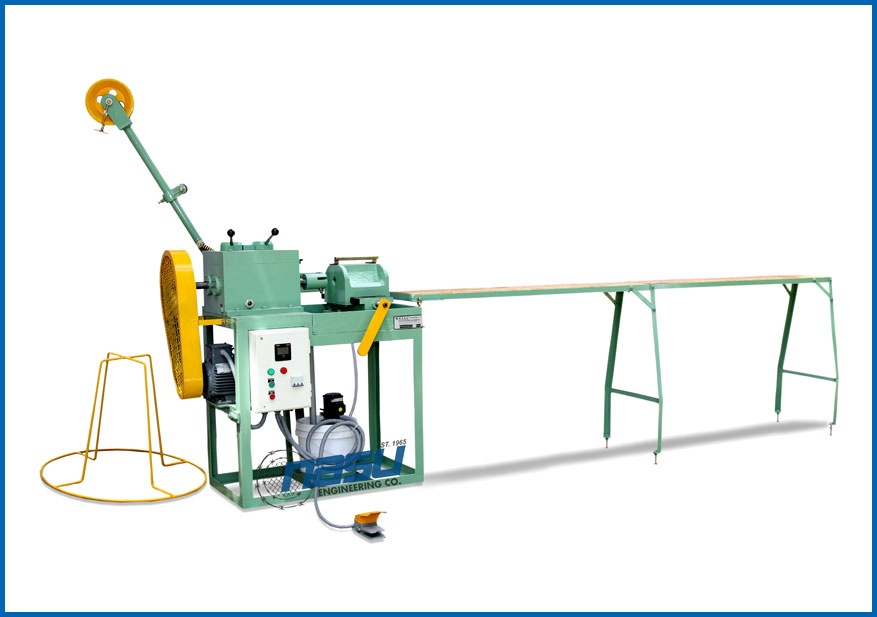

NECO CLN 3000 DEL
|

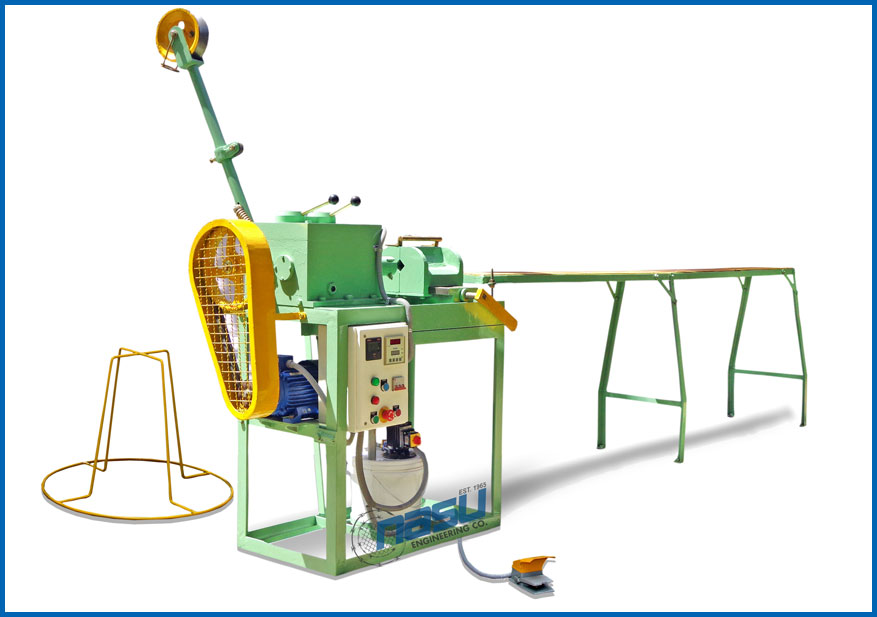

NECO CLN 3000 APLN
|
NECO ACLN 2400 PLC
|
|
Mesh Range
|
|
19-100 mm (3/4"-4")
|
19-100 mm (3/4"-4")
|
50 - 76 mm (2" - 3")
|
|
Wire Dia.Range
|
|
1.6-4.0 mm (16 - 8 SWG)
|
1.6-4.0 mm (16 - 8 SWG)
|
3.25 - 2.64 mm (12 - 10 SWG)
|
|
Max.Fence Width
|
|
3050 mm(10')
|
3050 mm(10')
|
2400 mm (8')
|
|
Blade Speed
|
|
190, 360, 640, 1200
|
190, 360, 640, 1200
|
360
|
|
Wire Material
|
|
G.I. /PVC Coated Wire [OPTIONAL]
|
G.I. / PVC Coated Wire [OPTIONAL]
|
G.I.
|
|
Type of Weave
|
|
Standard
|
Standard
|
Standard
|
|
Motor Rating
|
|
2.2 KW ( 3 HP)
|
2.2 KW ( 3 HP)
|
2.2 KW ( 3 HP) [Main Drive]
|
|
Production Capacity
|
19mm (3/4")
|
93m2 1000 Sq.Feet
|
93m2 1000 Sq.Feet
|
-
|
|
|
25mm (1")
|
120m2 1300 Sq.Feet
|
120m2 1300 Sq.Feet
|
-
|
|
|
50mm (2")
|
185m2 2000 Sq.Feet
|
185m2 2000 Sq.Feet
|
185m2 2000 Sq.Feet
|
|
|
75mm (3")
|
280m2 3000 Sq.Feet
|
280m2 3000 Sq.Feet
|
280m2 3000 Sq.Feet
|
|
|
100mm (4")
|
370m2 4000 Sq.Feet
|
370m2 4000 Sq.Feet
|
-
|
|
Floor Space Required
|
|
|
|
|
|
Machine
|
19mm (3/4")
|
1830 mm X 1320 mm (L X W)
|
1830 mm X 1320 mm (L X W)
|
2000 mm X 1750 mm (L X W)
|
|
Table
|
|
3050 mm X 535 mm (L X W)
|
3050 mm X 535 mm (L X W)
|
3050 mm X 535 mm (L X W)
|
|
Drive
|
|
Direct Drive
|
Direct Drive
|
Direct Drive
|
|
Programmable Logic Control (PLC)
|
|
|
|
|
* All Photos are for Representation Only.
* All Specifications are subject to change without any prior Notice.
