2. Barbed Wire Making Machine

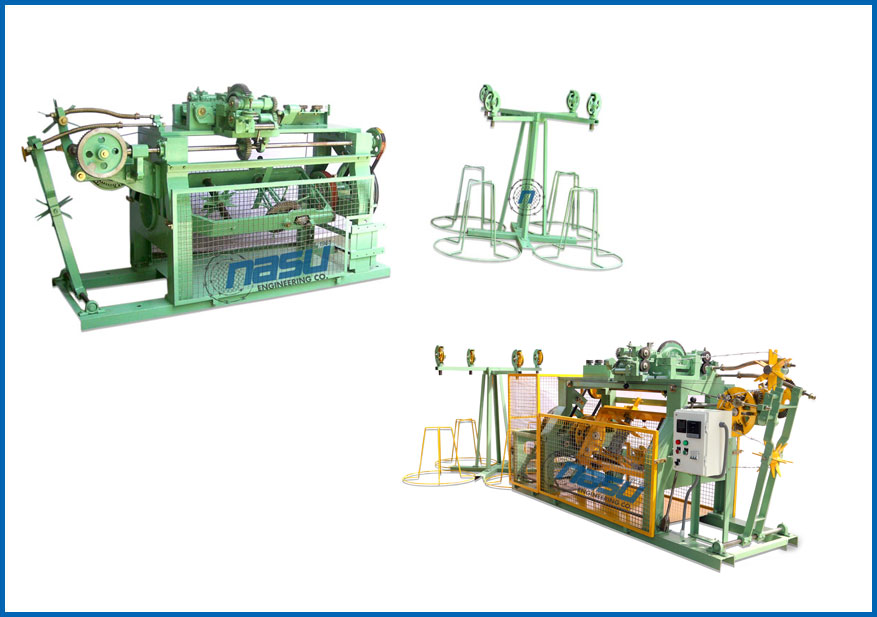

  • NECO BRW 500 EL
  • NECO BRW 600 PLN

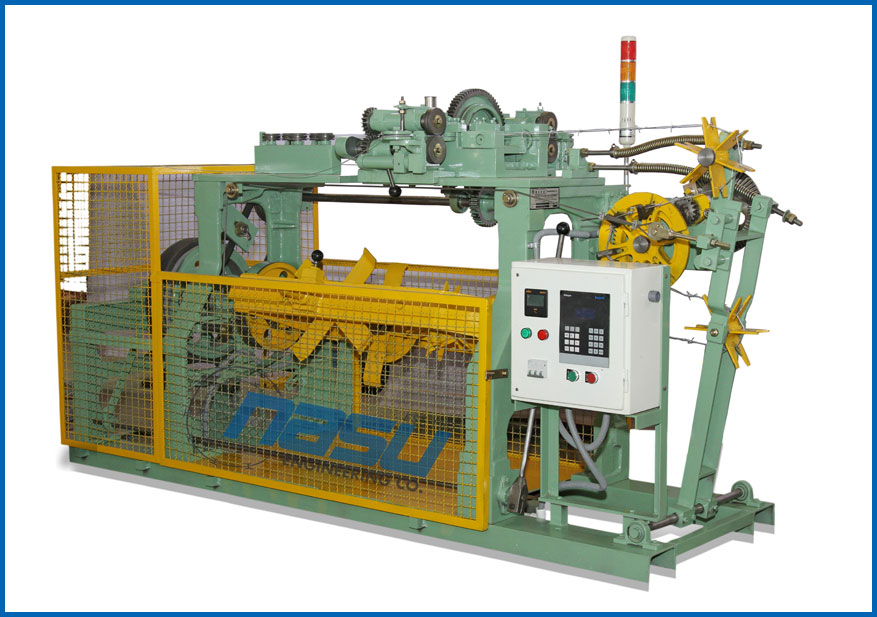

  • NECO BRW 800 PLC
BARBED WIRE MAKING MACHINE
Model NECO BRW 500 EL NECO BRW 600 PLN NECO BRW 800 PLC *

(The Model for Export Only)
Barb Pitch 75-100 mm (3"-4") 75-125 mm (3"-5") 75-125 mm (3"-5")
Wire Dia.Range 1.6-2.0 mm (16-14 SWG) 2.0-2.5 mm (14-12 SWG) 1.6-2.5 mm (16-12 SWG)
Max. Bundle Weight 35-40 Kg. 40-45 Kg. 40-45 Kg.
Wire Material G.I. G.I. G.I. /PVC Coated Wire
Type of Twist Standard Twisted (Iowa Four Point) Standard Twisted (Iowa Four Point) Standard Twisted (Iowa Four Point)
Motor Rating 2.2 KW ( 3 HP) 3.7 KW ( 5 HP) 3.7 KW ( 5 HP)
Production Capacity 400 -500 Kg. 400 -600 Kg. 400 -600 Kg.
Floor Space Required
Machine 2450 mm X 1320 mm (L X W) 2750 mm X 1320 mm (L X W) 2750 mm X 1320 mm (L X W)
Stand 2150 mm X 2150 mm (L X W) 2150 mm X 2150 mm (L X W) 2150 mm X 2150 mm (L X W)
Drive Direct Drive Mechanical Clutch Mechanical Clutch
Programmable Logic Control (PLC)
Tower Light

* All Photos are for Representation Only.

* All Specifications are subject to change without any prior Notice.
